Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type For Popular

Product Categories

Anping Taiye Metal Wire Mesh Products Co.,Ltd

Contact Now

Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type For Popular

Name: Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type For Popular
Brand: Taiye
Price: 1 USD

China Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type For Popular wholesale

Brand Name : Taiye

Model Number : 401

Certification : Test Report

Place of Origin : Anping County Hebei China

MOQ : 1ton

Price : Discussed

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20tons per day

Delivery Time : within 10days after receiving ur deposit

Packaging Details : Inner waterproof paper with woven bag outside

Named : Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type

Razor Blade Type : BTO11

Material : Hot Dipped Galvanized

Roll Meters : Based on Roll Weight

Weight of per roll : As your requirements usually is 10kg

Coil Diameter : 450mm 500mm 600mm 700mm 800mm 900mm 1000mm

Contact Now

Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type

Hot Dipped Galvanized is a kind of Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type's material

1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / Electro Galvanized Wire Hot Dipped Galvanized Sheet

Introduce the Barbed Blade Type of Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type
 1. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
 2. Razor Barbed sheet thickness: 0.45±0.05mm

  	 			BTO11 Razor Blade Specification
 			Razor Thickness 			0.45±0.05mm
 			Barb Length 			11±2mm
 			Barb Width 			15mm
 			Barb Space 			26mm
 			Core Wire Dia. 			2.0-3.0mm
 			Package 			Inner waterproof paper with woven bag outside
  3. Razor Loop Diameter: 600mm
 Other Coil diameter for u choose: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
 450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes

  	 			Razor Wire Roll Diameter With Clips Choose
 			450mm 			500mm 			600mm 			700mm 			750mm 			800mm 			900mm 			1000mm
clips 			3 clips 			3 clips 			3 clips
clips
clips
clips
clips
clips
clips
clips
clips
clips

 			Usually clients choose roll diameter 500mm used on the top of fence or wall

Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)

Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Length so we know except the coil diameter affect the length, also need to confirm the Razor Barbed Wire Blade Type and Per Roll Weight. Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:

1. 500mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 10-12m
2. 500mmx10kg/roll
 Cover length is 15cm between each loop, then 10kg can get 6-7m


Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Per Meter Direction for use
Concertina Razor Wire usually attached on "Y" or "V" support and should be mounted razor wire with wire diameter Ф=4mm/3mm/2.8mm in circles with razor wire coil diameters Ф=500mm, with distance between circles 150mm-400mm.
Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Paking and shipping
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27ton

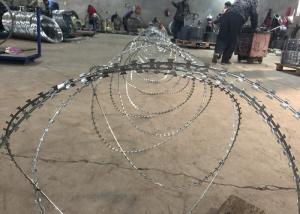

The Following pic is after cliped 950mm coil diameter Hot Dipped Galvanized BTO11 Razor Wire Blade Type which wating to packed on the workshop. And this type much popular in In Vietnam and Korea Market
